제품 상세 정보:
|

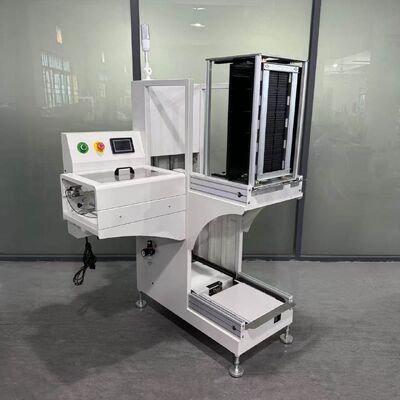

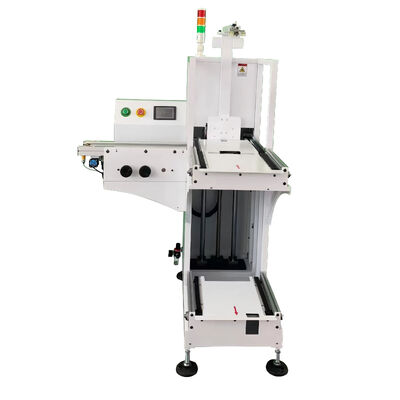

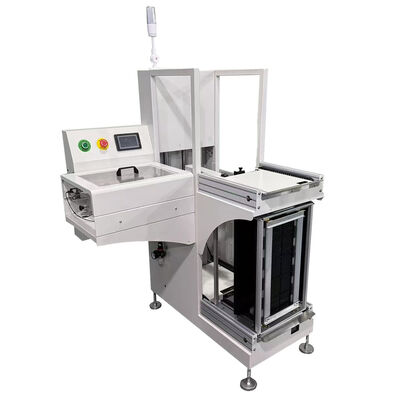

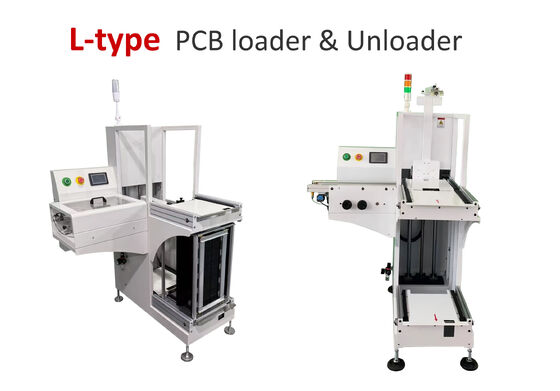

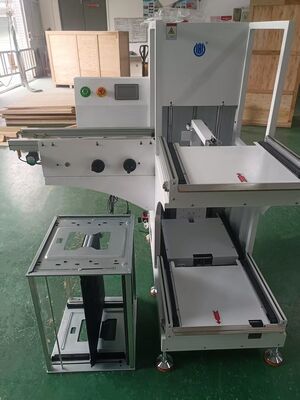

| 이름: | L형 PCB 로더 및 언로더 | 애플리케이션: | 전자동 SMT 생산 라인 |
|---|---|---|---|
| PCB 매거진 크기: | 355*320*565mm; 460*400*565mm; | 250 모델 치수: | 로더: 1100x780x1200mm; 언로더: 1700x780x1200mm |
| 330 모델 치수: | 로더: 1400x860x1200mm; 언로더: 1900x860x1200mm | 무게: | 250 모델: 140&150kg; 330 모델: 150&170kg |
| 강조하다: | Compact L-Type PCB Loader Unloader,PLC Control SMT Magazine Loader,Anti-Jam Protection Automatic PCB Loader |
||
| Feature | Description |
|---|---|
| PLC Control | LED touchscreen + tactile keypad for easy operation |
| Lifting Motor | Single-phase gear motor for smooth vertical motion |
| Platform | Precision-machined aluminum alloy, high stability, minimal deformation |
| Pneumatic Clamps | Upper/lower clamps ensure accurate magazine positioning |
| Safety Protection | Position sensors + limit switch braking for dual safety |
| Step Pitch | 4 adjustable settings: 10/20/30/40mm |
| Fault Detection | Auto error code display for quick troubleshooting |
| Status Alert | Tri-color tower light with buzzer for real-time indication |
| Anti-Jam Design | Poka-Yoke structure protects PCBs from damage |
| SMEMA Interface | Seamless connection with other SMT equipment |
| Compact Size | Small footprint ideal for space-limited factories |
| Specification | L-250LD / L-250ULD | L-330LD / L-330ULD |
|---|---|---|
| PCB Size (L*W) | 50*50 - 350*250 mm | 50*50 - 460*330 mm |
| Dimensions (L*W*H) | 1000*1000*1350 mm | 1100*1100*1350 mm |
| Magazine Size (L*W*H) | 355*320*563 mm | 460*400*565 mm |
| Weight (Kg) | 140 Kg | 170 Kg |
| Unloading Time | < 6 seconds | |
| Pusher Mode | Motor-driven pusher | |
| Transfer Direction | Left -> Right or Right -> Left | |
| Transfer Height | 900 ± 30 mm (or customer-specified) | |
| Air Pressure & Consumption | 4-6 bar, max 10 liters/minute | |
| Power Supply & Load | 220V AC (user-specified), Single-phase, Max 300 VA | |
| PCB Thickness | Minimum 0.4 mm | |
| Full Load Storage Capacity | 50pcs PCB | |
