제품 상세 정보:
|
| 작동 전원: | 5-10kW | 시동 전원: | 45 kw |
|---|---|---|---|
| 난방 구역의 양: | 위8/아래8 | 발열 에리어: | 3150*500mm |
| 자동레일 포함: | 그래요 | 워밍업 시간: | 약 15-20분 |
| PC 제어로: | 예, 산업용 컴퓨터를 사용하면 | 구성 요소 유형: | CSP, 0201 칩 등 |
| 크기: | L 4600*1300*1470mm | 순중량: | 2000kg |
CHM-PC850 Full automatic rail large reflow oven + PC control 8 temperature zones (up8+down8)
Lead-free SMT Reflow Oven SMT soldering oven, heating size 3150*500mm
PC850 Big-Sized 8 Zones Lead-Free SMT Reflow Soldering Oven

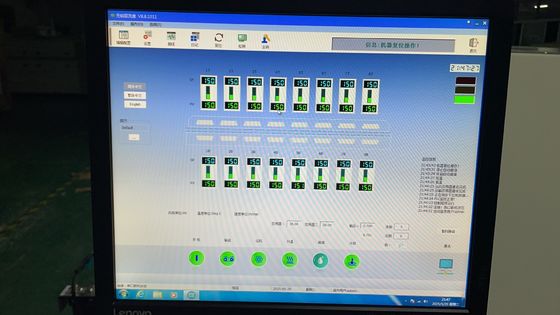

| Model No. | CHM-PC850 |
| Heating Parts Parameters | |
| Number of Heating Zones | Up8 + Bottom8 |
| Length of Heating Zones | 3150mm |
| Heating Pattern | Full Hot Air (up and down in a small cycle) |
| Number of Cooling Zones | Plasma fan air-cooled plus two-stage liner cooling (length 800MM) |
| Conveyor Parts Parameters | |
| Max.Width Of PCB | Mesh width 500mm |
| Conveyor Direction | L→R |
| Conveyor Height | 880±20mm |
| Transmission Agent | Mesh + automatic rail |
| Conveyor Speed Range | 0-2000mm/min |
| Control Parts Parameters | |
| Power Supply | 5 Wire, 3 Phase, 380V |
| Start Power | 48KW |
| Power Consumption | Approx 8-10KW |
| Warming Time | Approx 20 mins |
| Temp. Setting Range | Room Temp.-380℃ |
| Temperature Control Method | PC+PID+SSR |
| Temperature Difference Between Adjacent Zone | 70 ℃, can correspond to the highest standards of lead-free process. |
| Temperature Control Precision | ±2℃ |
| Temperature Deviation on PCB | ±2℃ |
| Abnormal Alarm | Temperature abnormal(too high or too low after the constant temperature keeping) |
| Power-off Protection | UPS |
| Open Way | Electric Screw Rod |
| General Parameters | |
| Dimension(L*W*H)mm | 4600*1300*1470 mm |
| Weight | Approx 2000Kg |

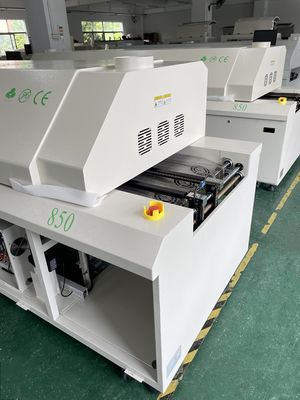

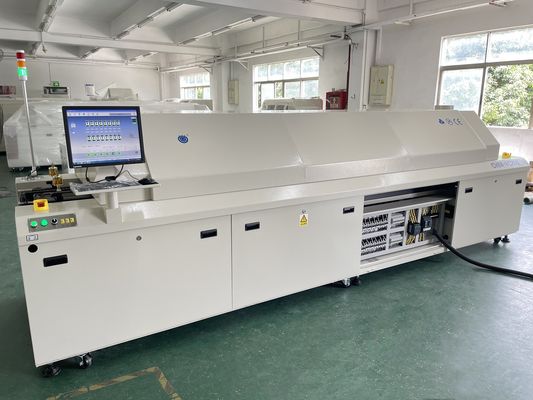

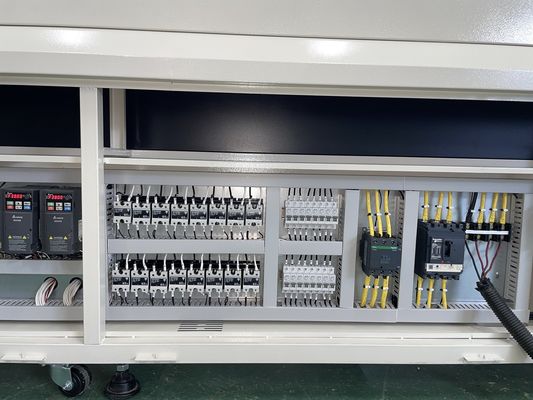

Real pictures for CHM-PC850:
