제품 상세 정보:
|
| 차원: | 1600 (L) X1688 (W) X1560 (H) | 머리: | 20- 헤드 (10- 헤드* 2 팔); 31 홀 노즐 라이브러리가 있습니다 |
|---|---|---|---|
| PCB 크기: | 단일 트랙 컨베이어 : 600*50-450mm; 듀얼 트랙 컨베이어 : 600*50-250mm | 속도: | 82000cph (최적) |
| 공급기: | 100pcs NXT 전기 피더를 지원합니다 | 장착 정확도: | (XY) ± 40μm CPK≥1.0 |
| 요소: | 01005, 0201,0402, -5050, SOP/QFP/QFN/BGA/LED .. | 순 중량: | 2000kg |
| 카메라: | 비행 카메라 : 10pcs*2 암 (구성 요소 크기 16*16mm); 마크 카메라 : 2pcs*2 팔 | PCB 배송: | 레일이있는 자동 배송 3 개, 너비는 소프트웨어로 조정할 수 있습니다. |
| 전원 공급 장치: | AC380V (50Hz, 3 상) 6kW | 가장 높은 구성 요소: | 12mm |
| 강조하다: | 20-head SMT pick and place machine,dual-arm PCB assembly machine,high-speed TS20 placement machine |
||

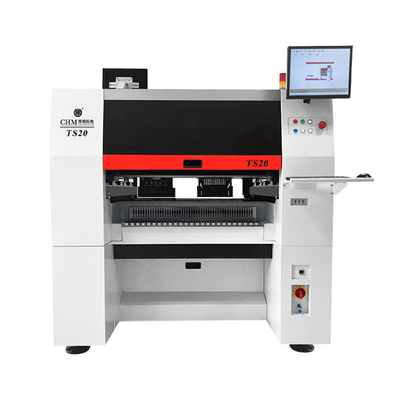

Dual-arm Dual-lane high speed high precision 20-head SMT Pick and Place Machine TS20
Smart software Full In-line Large SMT production line
1. Introduction
Double the Arms, Double the Lanes, Double the Output.
This TS20 adopts the integrated structure of precision machinery and uses Charmhigh independent research and development results.
It has the characteristics of high precision, high stability, complete functions and convenient use.
Unleash unparalleled productivity with our advanced dual-arm technology operating on two independent lanes.
Experience precision at speed and achieve a superior return on investment.
The TS20 is built to dominate your high-volume SMT production challenges.
2. Machine features
1. Thermal Compensation
2. Mounting Range: The minimum: 01005/maximum:16mm(L)×16mm(W)
3. Built-in Vacuum Pump
4. Automatic nozzle change(31 sets nozzle library)
5. Dual Lane Shuttle Conveyor

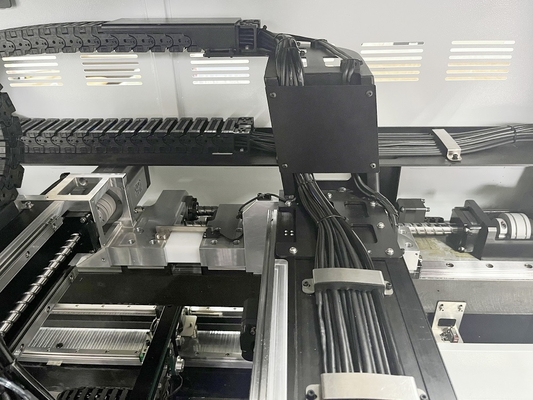

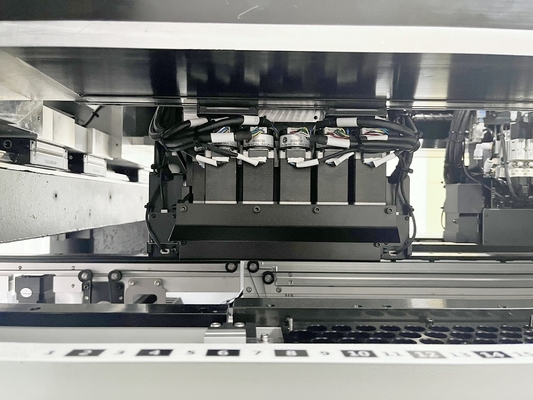

6. 10 head * 2 gantry(front and rear arms)
7. 100 NXT8mm feeder stacks
8. Y-axis gantry integral casting
For more machine features, please consult our account manager
TS20 working video:
https://www.youtube.com/watch?v=Z94UJfxZoao
TS20 parameters:
Dual-arms, dual-lane, high accuracy (XY)±40μm CPK≥1.0, high speed high production 82000 CPH
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
